Pillow Block by Justin Bogart

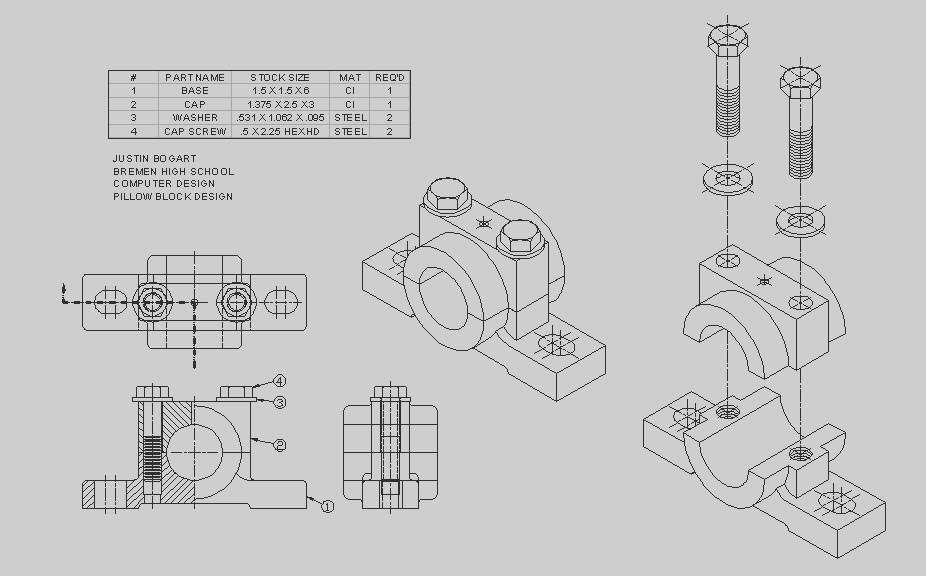

Justin completed these working drawings for a class assignment in 2008. They include multiview, half section, schematic threads, assembly, isometric assembly, and isometric exploded assembly drawings, as well as callouts and a parts list linked to an Excel file. Dimensions were removed for clarity. Good work, Justin!
